DMD2 · HUB · Events

Live Event

During an event on the DMD HUB, the riders who join see each other on the map with how they are doing: riding, on a break, needing a hand. An SOS reaches the crew and the riders nearest to it at once. The organiser puts the day's places on the map ahead of time and posts announcements and regroup pins, riders write to the crew, and everyone can say Finish safe at the end. It is the event's own channel: your riding group carries on beside it.

RIDERS ON THE MAP SOS BOARD & REGROUP CREW EVENT POINTS FINISH SAFE FREE
Live Event is free for organisers and riders: it needs a HUB sign-in and nothing more — see Free vs. Licensed. You can join an event you are Going to, your own event, or one whose crew you are in, while its live window is open.
At a Glance
Where to start
Join live event on the event's start card, the round JOIN button on the map, or the event's page in the HUB.
When
From one hour before the start to two hours after the end, unless the organiser set other hours. Outside that window nothing is shared.
Who sees you
The event's riders and its organiser and crew, and only while you share. A public live page shows you only if you say yes.
Safety
SOS and Need a hand reach the crew and the nearest riders; the map tells you who, how far, with Navigate. Crew members can share a number to Call.

Join an event live

Live Event belongs to the events you created on the DMD HUB website and the ones you marked Going — the same ones DMD2 reminds you of on event day. While one of them is live, DMD2 offers to join it in three places:

  • the event's start card over the map, with a green Join live event;
  • a round JOIN button on the map, with a flag;
  • the event's page in the HUB (My Events, or Details on its card): Join live event under Navigate To, and Open live event once you are in.
The event's start card with a green Join live event button, and the round JOIN button on the map behind it

The start card, and the map's JOIN button behind it.

Each of them opens the Live Event view on its join screen first: it says who will see your position and for how long, with Join live event and Not now. Not now takes the JOIN button off the map for that event; the event's page still offers it.

At the start

When you arrive at the start of an event you are going to while it is live (within about 300 m of its Start point, else its Briefing point or the event's place), DMD2 asks, on screen and aloud: “You're at the start of … Join the live event?” Join joins it now; Always join automatically joins it and switches on Join live events automatically at the start, so from then on DMD2 joins for you when you arrive and tells you so, with Pause and Leave; Not now stops asking for this event. You switch it off again in Global settings.

DMD2 only counts your real position once you have been stopped at the start for about 20 seconds (riding past it does not count), never a simulated ride, and only while DMD2 is on screen. It never joins again an event you left or paused yourself, on this unit or another. Saying Not now on the event's join screen earlier does not stop the question at the start.

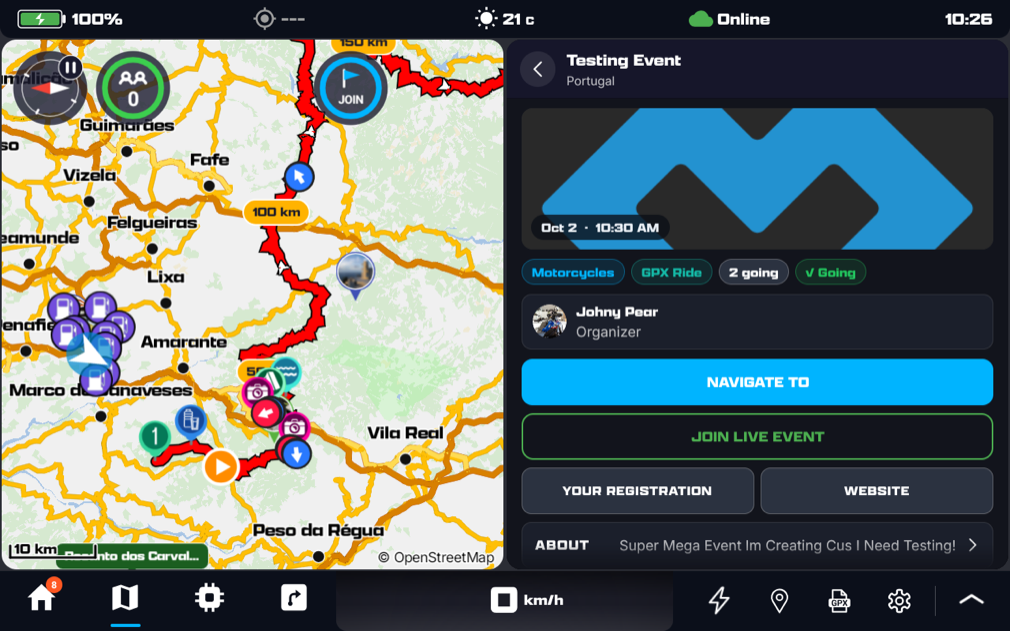

The event's page in the HUB: Navigate To, then a green Join live event button, Your Registration and Website

The event's page while it is live.

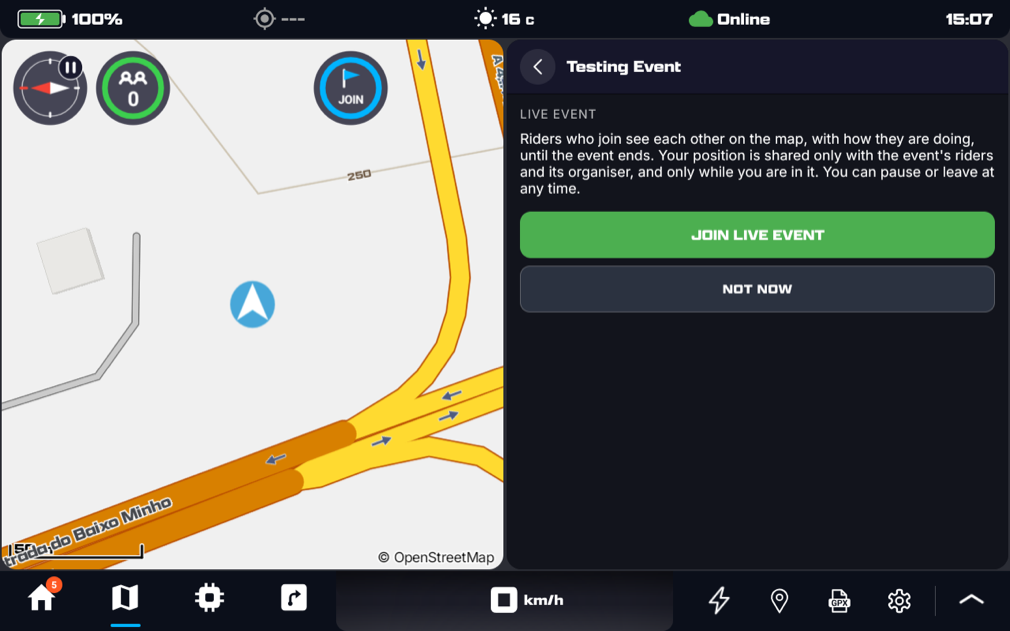

The join screen beside the map: what Live Event shares and with whom, Join live event and Not now

The join screen.

Not going yet? Mark yourself Going on the event's page first: the HUB lets in the riders going to the event, its organiser and its crew.

The Live Event view and button

Once you join, the round button on the map becomes the event button: a flag with the number of riders sharing now. It turns red and pulses while someone is in SOS, amber while someone needs a hand, grey while you are paused, and shows a tick once you finished safe. Tap it to open the view beside the map; tap it again to close it.

The view, from the top:

  • Crew — the organiser and the crew, joined or not, with their state and how far away they are;
  • My state — four big buttons, then Pause, Finish safe and Leave (see Your state);
  • four tabs: Board, Riders (everyone else, those who need help first, with Navigate), Messages and Event (the live hours, the finish, the public live page and the event's page).

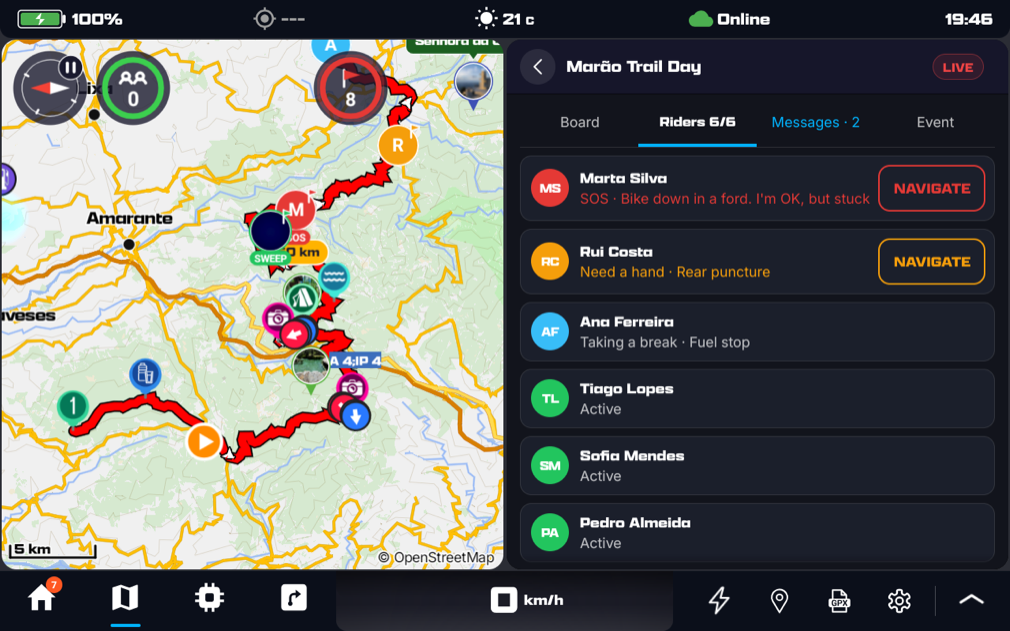

The Riders tab beside the map: a rider in SOS and one who needs a hand at the top with Navigate, then riders on a break and active

The Riders tab: who needs help comes first, with Navigate.

Your state

Everyone sees your state on your pin and your row. You set it yourself; it shows at once and is sent as soon as there is signal.

  Active ·   Taking a break

Riding, or stopped for fuel, food or a view. Active is where you start.

  Need a hand ·   SOS

A puncture, a dropped bike you cannot lift — or an emergency. Both reach the crew and the nearest riders: see SOS and Need a hand.

Pause

Stops sharing your position for a while: the others see you as Paused, in grey. Share again carries on.

Finish safe · Leave

Both stop sharing and tell the others you are safe. Finish safe keeps the view so you can still see who is out there; Leave closes it (“I'm safe, heading home”).

Signal lost is not a state you pick: a rider whose last position is more than five minutes old shows in grey with “last seen … ago”. It is not an SOS — usually a valley without coverage.

The riders on the map

Every rider sharing a position has a pin: their photo or initials in a ring of their state's colour, with a small pennant that says “event rider”. A word under the pin names the ORGANISER, a crew role (SWEEP, LEAD…) or an SOS. Purple pins are regroup points with their time; the chequered flag is the finish. Tap any of them for the Live Event view. In the view, tap a rider to centre the map on them.

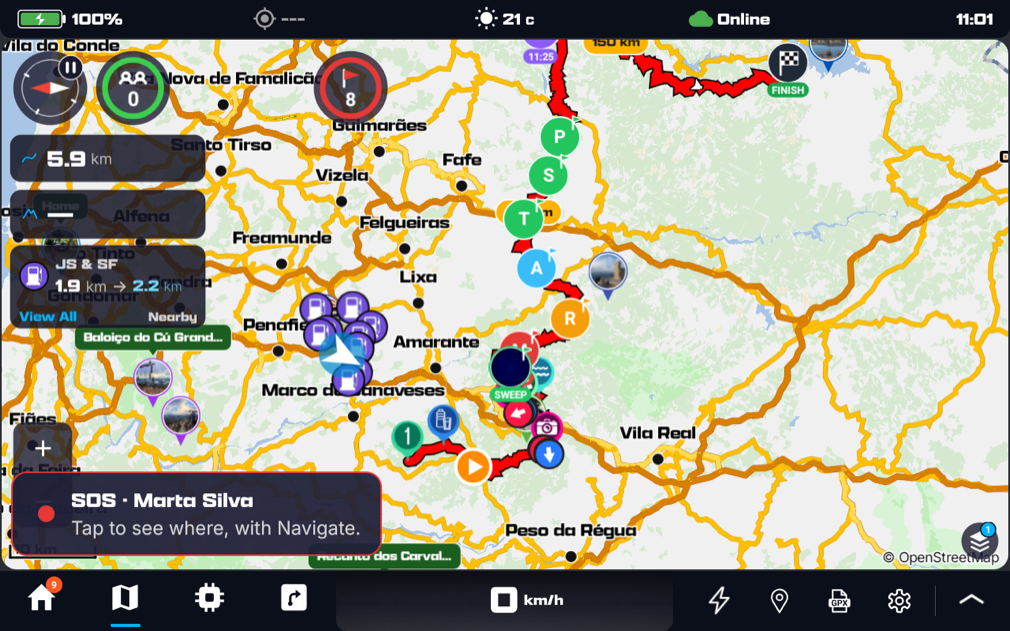

The map with event riders along the route, the finish flag at the end of the route, the red event button with 8 riders, and the red SOS notice in the corner

Riders along the route, the finish flag (top right), the event button in red and the SOS notice that stays.

A rider who is also in your active riding group shows once, as the group pin. The distances in the view come from your own GPS fix, and only from a fresh one.

SOS and Need a hand

Raising an SOS

Tap SOS and confirm. The crew and the riders nearest to you are alerted, with where you are. Your view then shows your position in large type (or your last known position, and how old it is), the emergency number for the country you are in, and I'm OK, stop the SOS. Pause, Finish safe and Leave wait until the SOS is over.

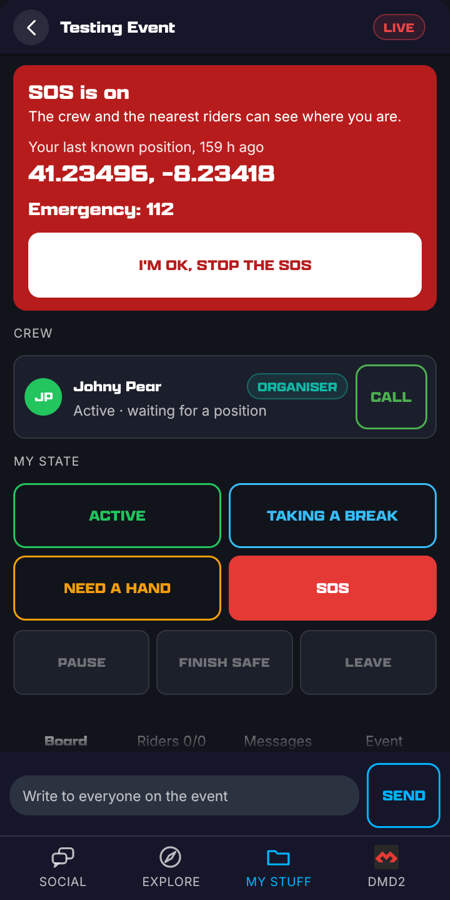

SOS is on: the last known position in large type, Emergency: 112 and I'm OK, stop the SOS; the crew below with a Call button

Your own SOS.

One SOS everywhere. If you also share your position in a riding group, an SOS here raises your group's Help Me too, and a Help Me raised in the group shows here as an SOS. Stopping one stops the other. The organiser and crew are people, not an emergency service: in an emergency, call the number on the screen as well.
When another rider raises one

The crew hears every SOS. Other riders hear it when they are within 15 km, or among the five riders nearest to it, or when either position is unknown — so the riders who can help hear it, without alarming the whole field. Those riders get:

  • the alert spoken by the navigation voice, and the event button red and pulsing;
  • a red SOS notice in the corner of the map, with how far away the rider is. It stays until you tap it or the SOS ends; another notice can cover it for a moment, then it comes back. Tapping it opens the view;
  • a red card on top of the view while the SOS lasts — who, their note, Navigate — and their pin in red with SOS under it. Tap the card to see them on the map.

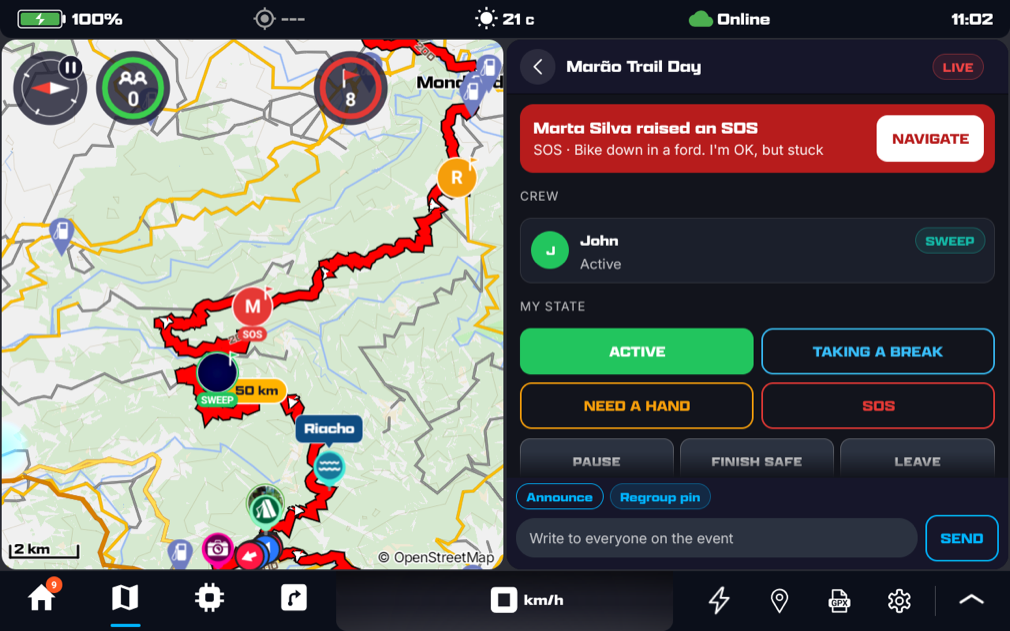

The view with Marta Silva raised an SOS on top, her note and Navigate; on the map her red pin with SOS under it, and the sweep close by

Another rider's SOS: the card on top with Navigate, the red pin on the map.

Need a hand reaches the same riders more gently: a short notice, the button and the rider's row in amber, and Navigate in their row — no voice.

The Board: posts, announcements, regroup pins

The Board is for everyone on the event: write in the bar under the view and Send. Posts by the crew are tinted, with their role. Long-press your own post to delete it; the organiser and admins can delete any.

Photo, beside the bar, posts a picture: take one or pick one from the gallery, and what you typed in the bar goes with it as its caption. DMD2 sends it smaller than the camera made it, without the photo's location data. Everyone on the event sees it on the Board (tap it to see it full size), and the public live page's Timeline shows it when you chose Name, photo, speed and posts and the organiser shows the Timeline. Deleting the post deletes the photo too. Each rider can post up to 60 photos on an event.

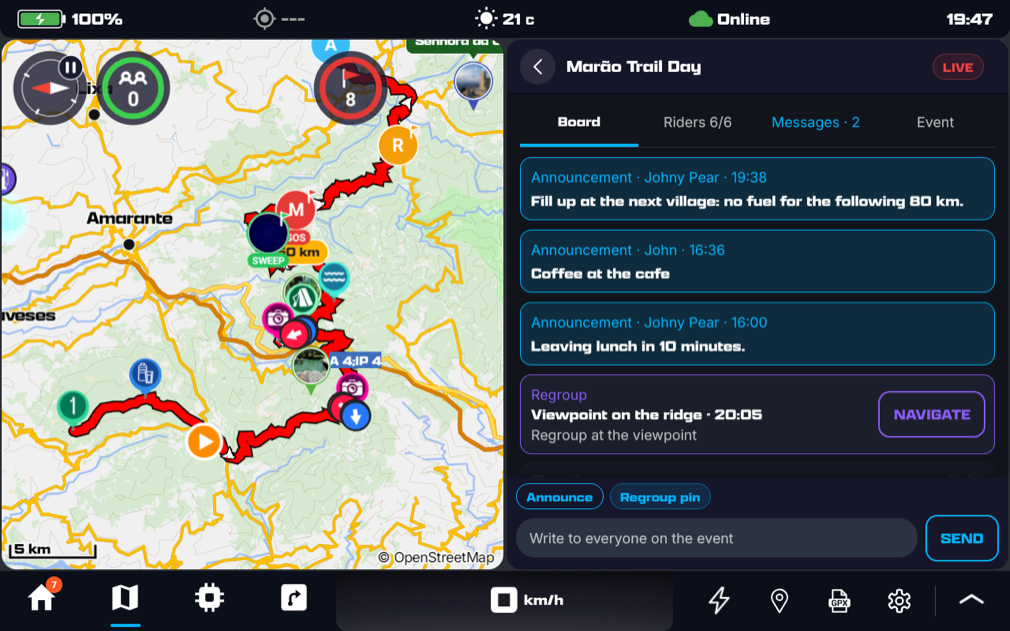

The Board: three pinned announcements, a purple regroup card with its time and Navigate, and the Announce and Regroup pin chips over the composer

Announcements pinned on top, a regroup card, and the organiser's Announce and Regroup pin.

A rider's photo post on the Board: a motorcycle at a mountain viewpoint with its caption, View from the ridge, stopping here for 5 minutes, and Photo beside Send under it

A photo post with its caption; Photo is beside Send.

Announcements

The organiser and admins switch on Announce before Send. An announcement is pinned on top of the Board, shown as a notice on every unit and read aloud by DMD2's navigation voice, so riders hear it without looking.

Regroup pins

Write what and where (“Lunch at Casa do Marão”), tap Regroup pin, choose where I am or the centre of the map, then now or in 15 to 90 minutes. Everyone gets a notice, a purple pin on the map with the time, and a card with Navigate.

Messages with the crew

Messages is your private thread with the crew — a question, a problem you would rather not post to everyone. Only the organiser and the admins read it. When the crew answers, a notice opens it.

The organiser and admins see an inbox instead, one thread per rider who wrote, with the newest line; tapping a rider in the view also offers Message. From the website, the organiser can also send one message to several riders at once: each gets it in their own thread.

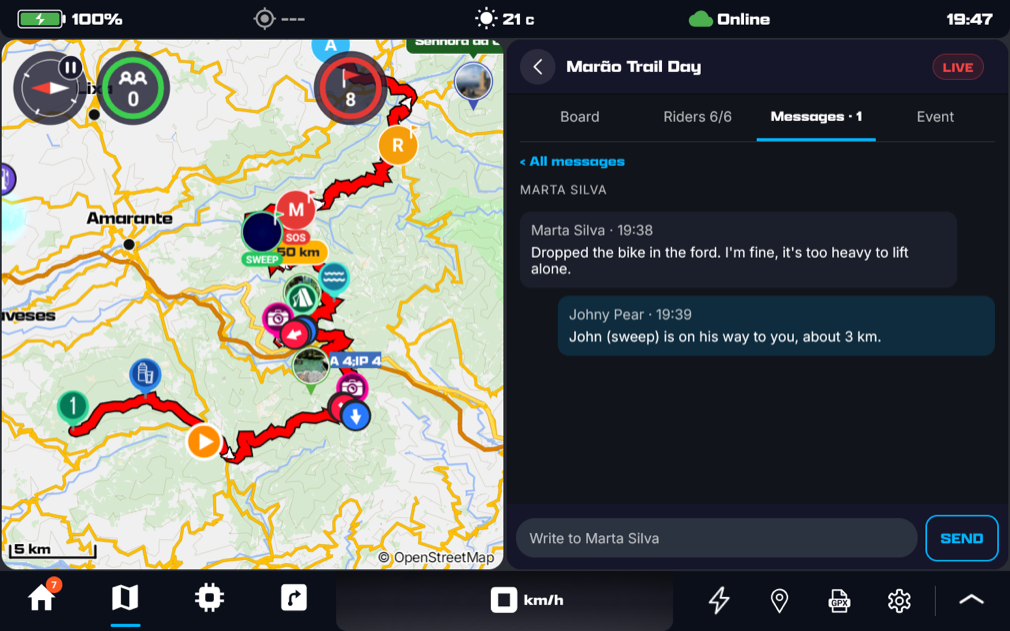

The organiser's thread with Marta Silva: her message about the dropped bike and the organiser's answer that the sweep is on his way

A rider's thread with the crew, on the organiser's unit.

The crew, roles and Call

The organiser leads the crew. In the view the organiser taps a rider and picks Give a role: Admin (the organiser only names admins), Sweep, Lead, First aid or Support van; admins hand out the riding roles too. No role takes it back. Admins can announce, drop regroup pins and read the crew messages. Everyone in the crew hears every SOS, and is on top of every rider's view, riding or not (“Not riding · reachable by message”).

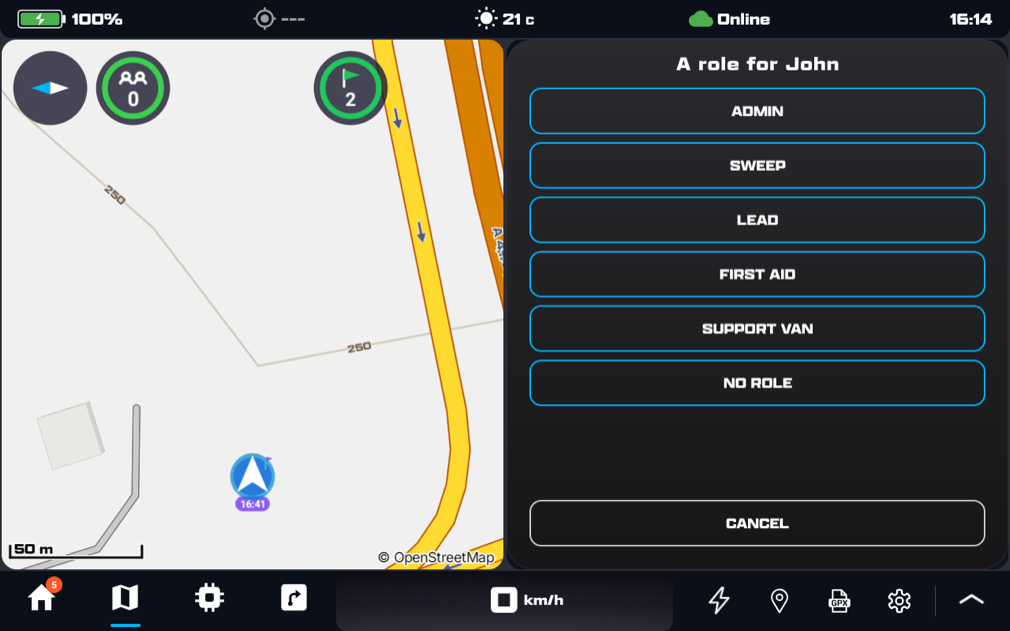

A role for John: Admin, Sweep, Lead, First aid, Support van, No role

Give a role.

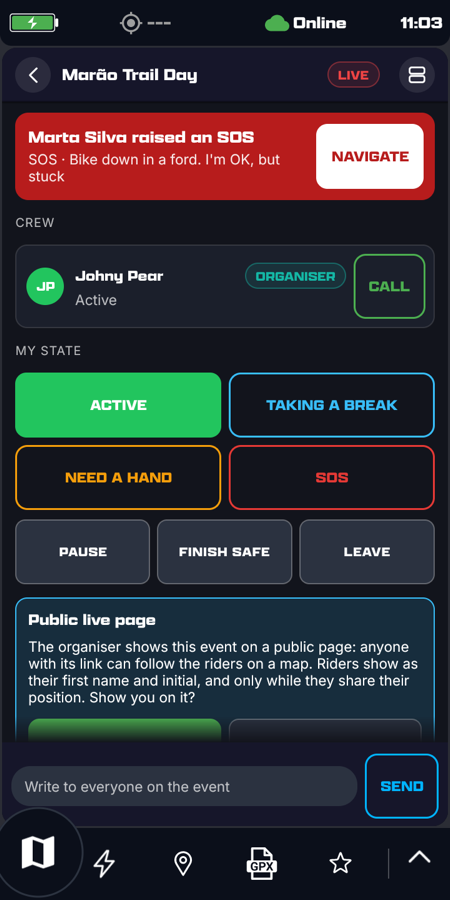

A rider's view in portrait: another rider's SOS on top, the organiser in the Crew with a green Call button, My state below

Call next to a crew member who shared a number.

Call

A crew member can share a phone number with the event's riders: in the view's Event tab, Your number for the riders → Share my number. Every rider then sees a green Call next to their name. Call opens your phone app with the number — DMD2 never places the call itself, and the phone connected to the unit can carry it. The number is kept for this event only; Change number and Stop sharing are in the same place, and on the website's live dashboard.

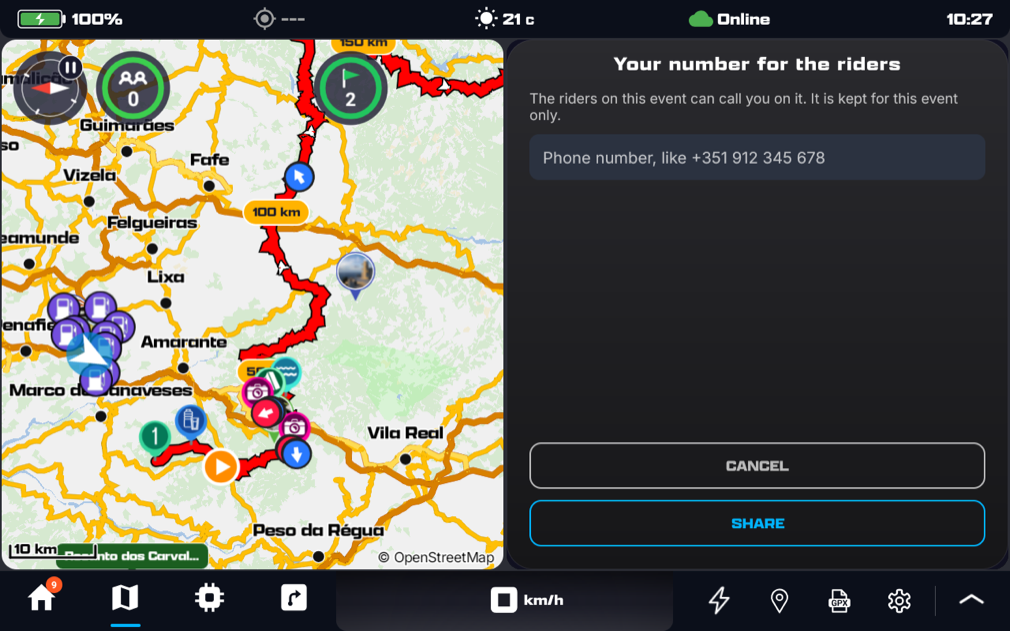

Your number for the riders: a phone number field, Cancel and Share

Sharing your number, from the Event tab.

The finish and Finish safe

When the organiser adds a Finish point, it is a chequered flag with FINISH under it on every rider's map, and a Finish card on the Event tab: tap the card to see it on the map, or Navigate to it.

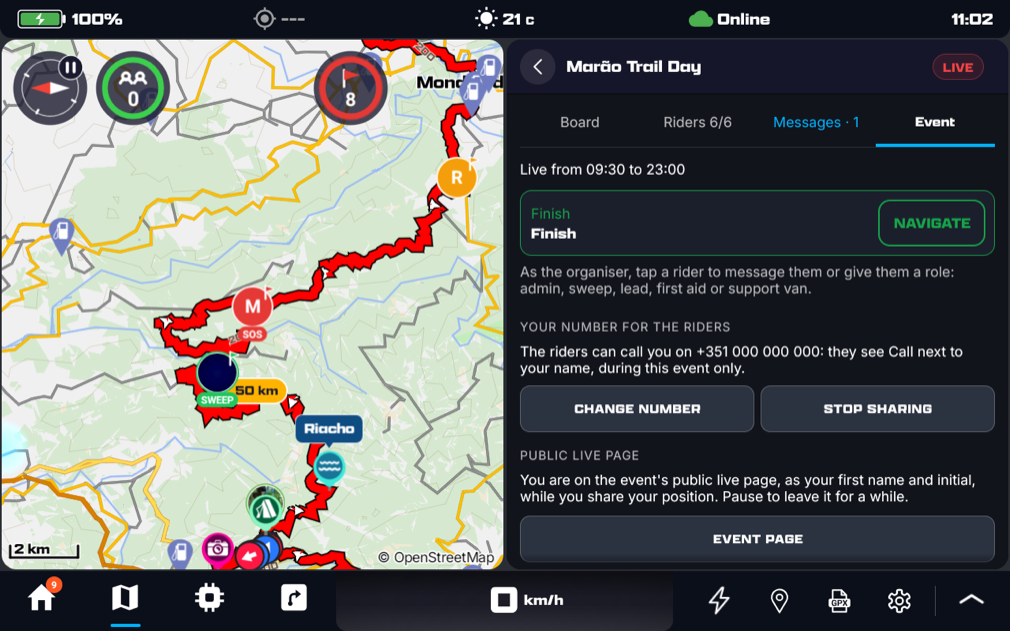

The Event tab: live from 09:30 to 23:00, the Finish card with Navigate, the organiser's shared number with Change number and Stop sharing, and the public live page status

The Event tab: the live hours, the finish, your number (crew) and the public live page.

Ride up to the finish and DMD2 asks “At the finish — Finished safe?”. It asks once per arrival, and only after you were more than a kilometre away, so a loop that starts where it finishes does not ask at the start. It does not ask while you are in SOS, need a hand or are paused. Not yet keeps you riding; you are asked again the next time you arrive.

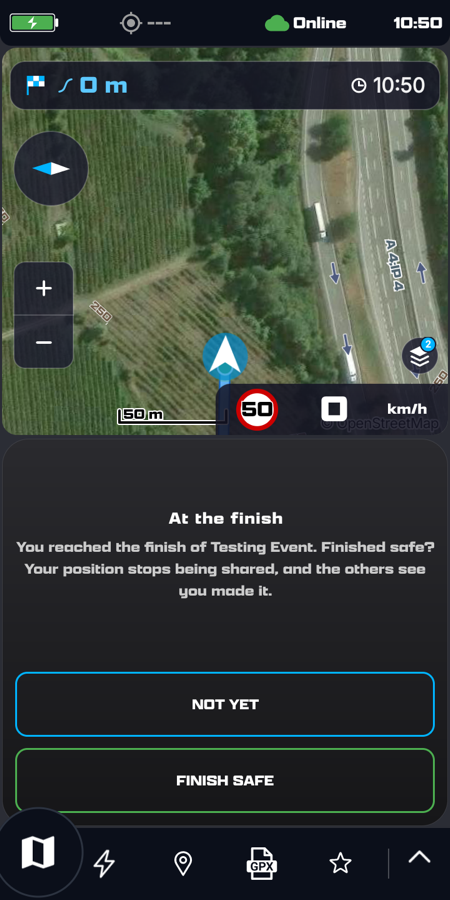

At the finish: You reached the finish of Testing Event. Finished safe? Not yet and Finish safe

Arriving at the finish.

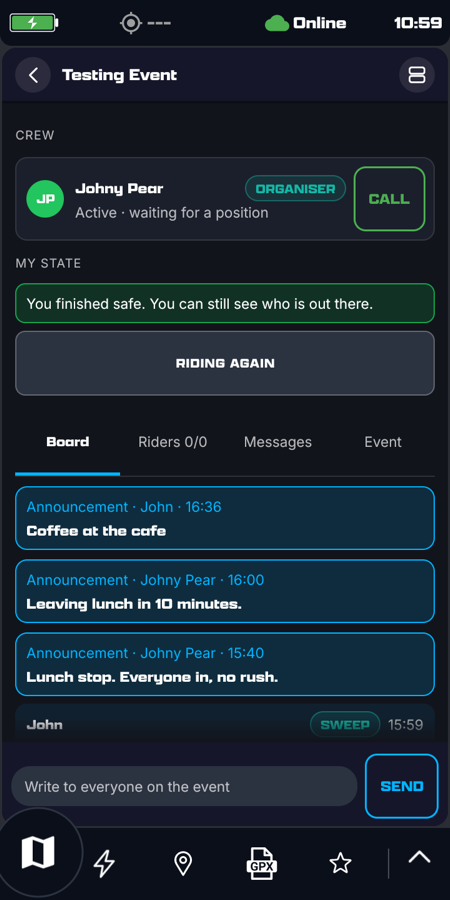

You finished safe. You can still see who is out there. Riding again

Finished safe, with Riding again.

Finish safe stops sharing your position and tells the others you made it; you keep the view, so you can still see who is out there. Said it too soon? Riding again puts you back to Active while the event is live.

Event points: the programme

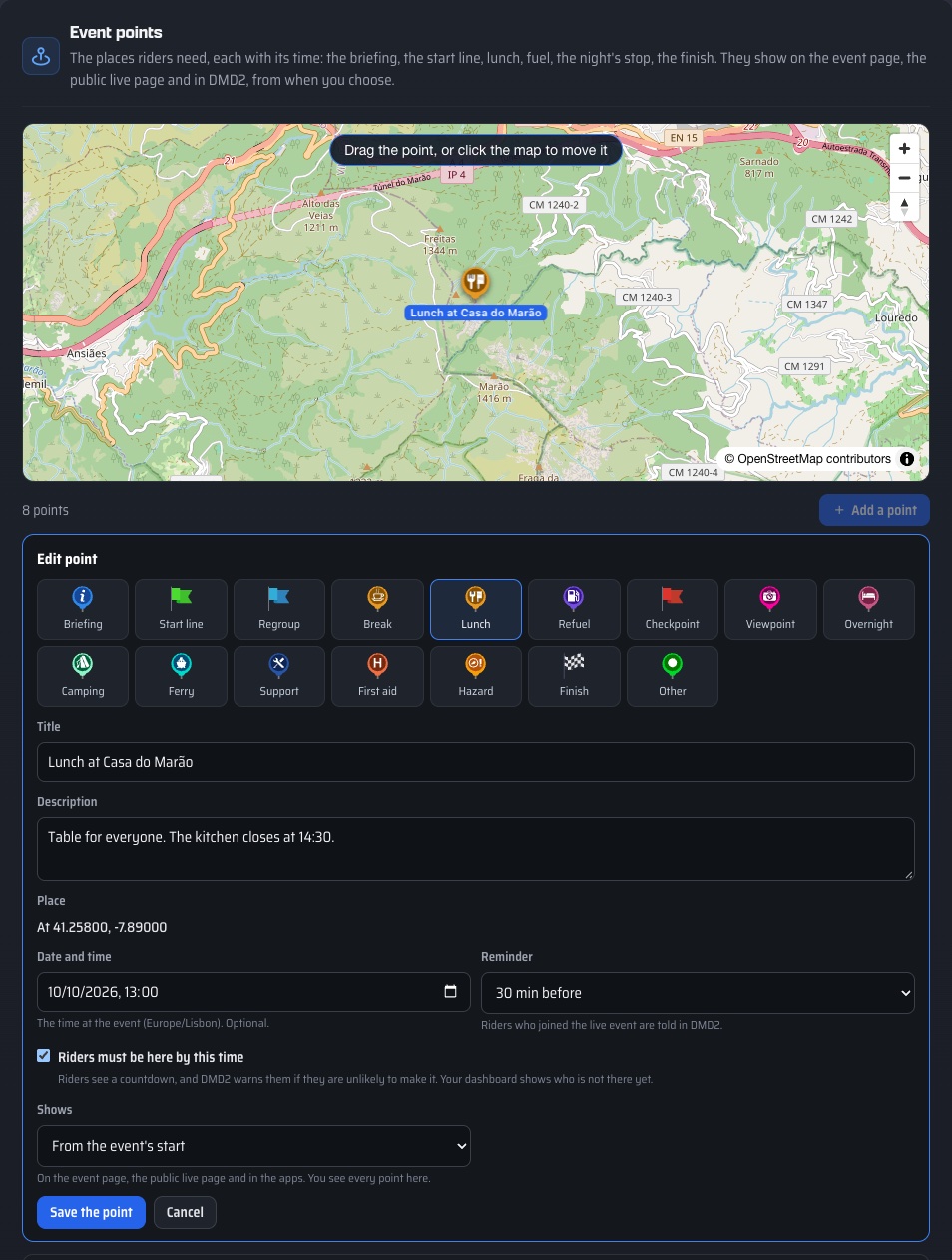

The organiser can put the places that matter on the map ahead of the day: the briefing, the start line, lunch, a refuel, the night's hotel, a checkpoint, the finish and more, each kind with its own icon. A point can have a description, a date and time, a reminder, and Be here by for a place riders must reach in time.

The organiser also picks when each point shows: always, from the event's start, or from a date and time, such as the second day's lunch on the second morning. A point that shows is on the event's page under Programme, in time order, and on the public live page. That page shows them days before the event too, before it has a route or riders, and says when the live map opens.

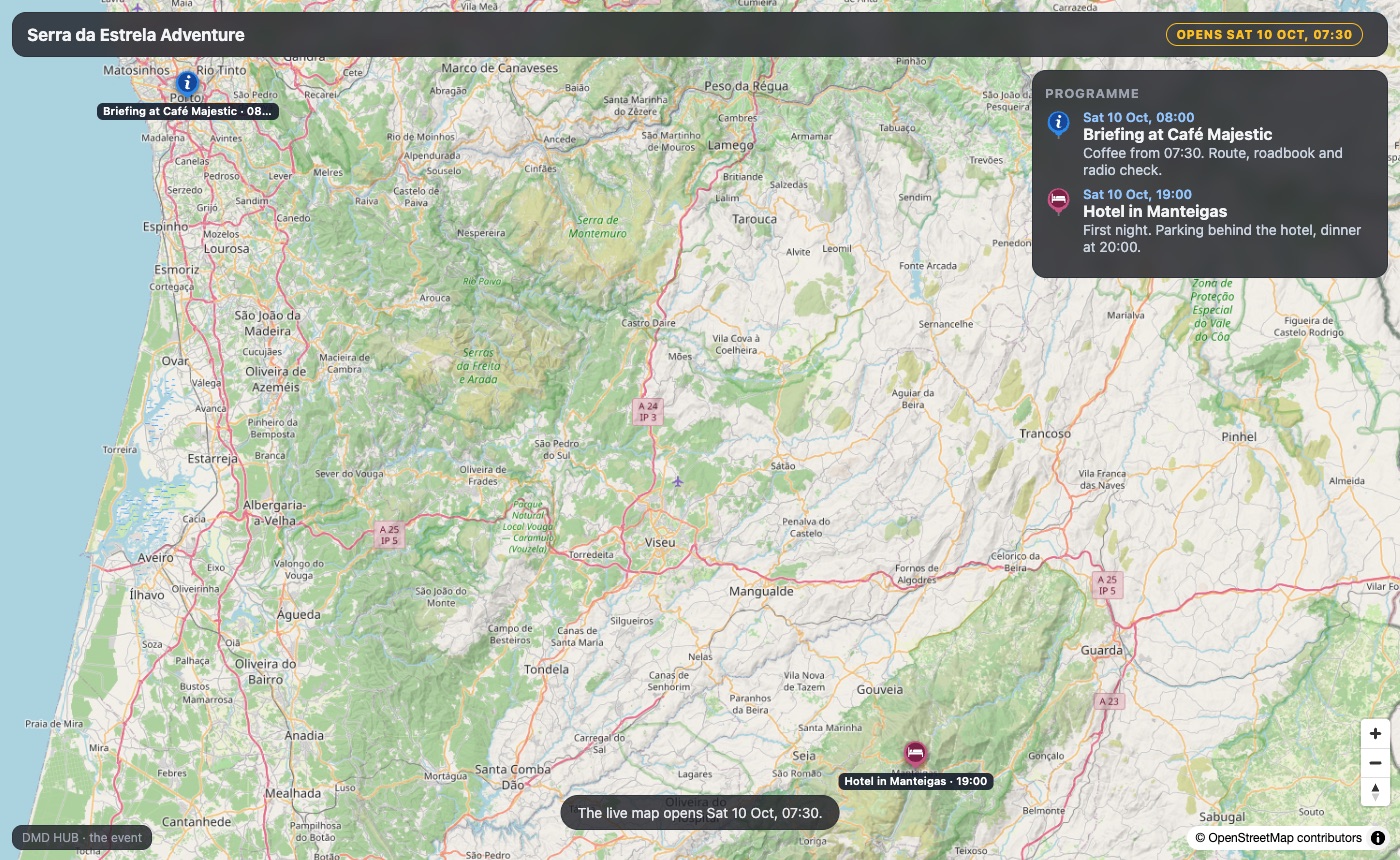

The public live page three days before the event: the briefing in Porto and the first night's hotel on the map, the Programme with their times and descriptions, and when the live map opens

Days before the event: the points that already show, and when the live map opens.

In DMD2 you can read them before joining, on the event's page in the HUB (My Events, or the event in Discover): Programme lists the points that show, with the next one on its closed header. Tap a point to see it on the map, or Navigate to it.

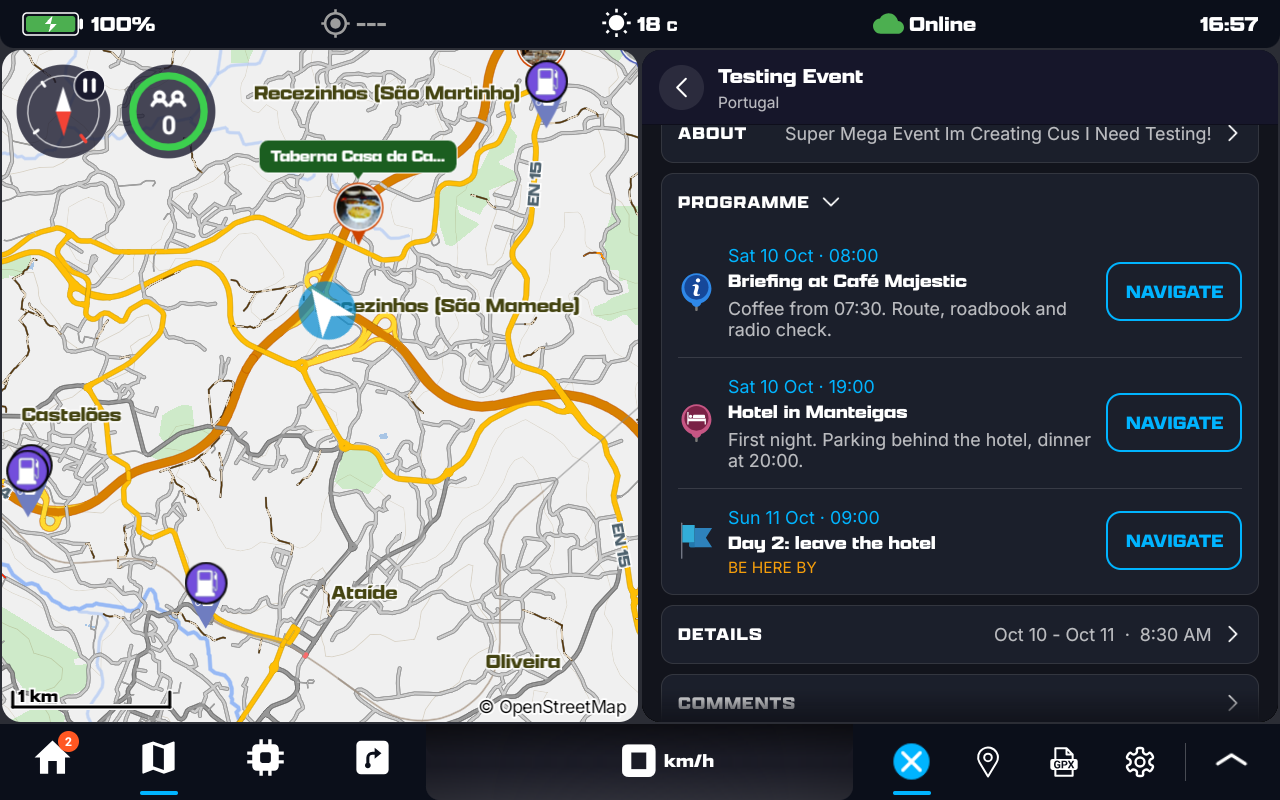

The event's page in DMD2's HUB: the Programme section open with Saturday's briefing at 08:00, the hotel at 19:00 and Sunday's 09:00 departure marked Be here by, each with Navigate; About above, Details and Comments below

The event's page in DMD2, days before: the points that already show.

During the event, the Event tab lists them under Programme: each point with its time and how long until it (“in 25 min”), Reached once you were there, or how late you are for a Be here by point. Tap a point to see it on the map, or Navigate to it. On the map each point is its icon with its time under it; the time is amber on a Be here by point you have not reached yet. Checkpoints count up as you reach them (“Checkpoints: 2 of 5”).

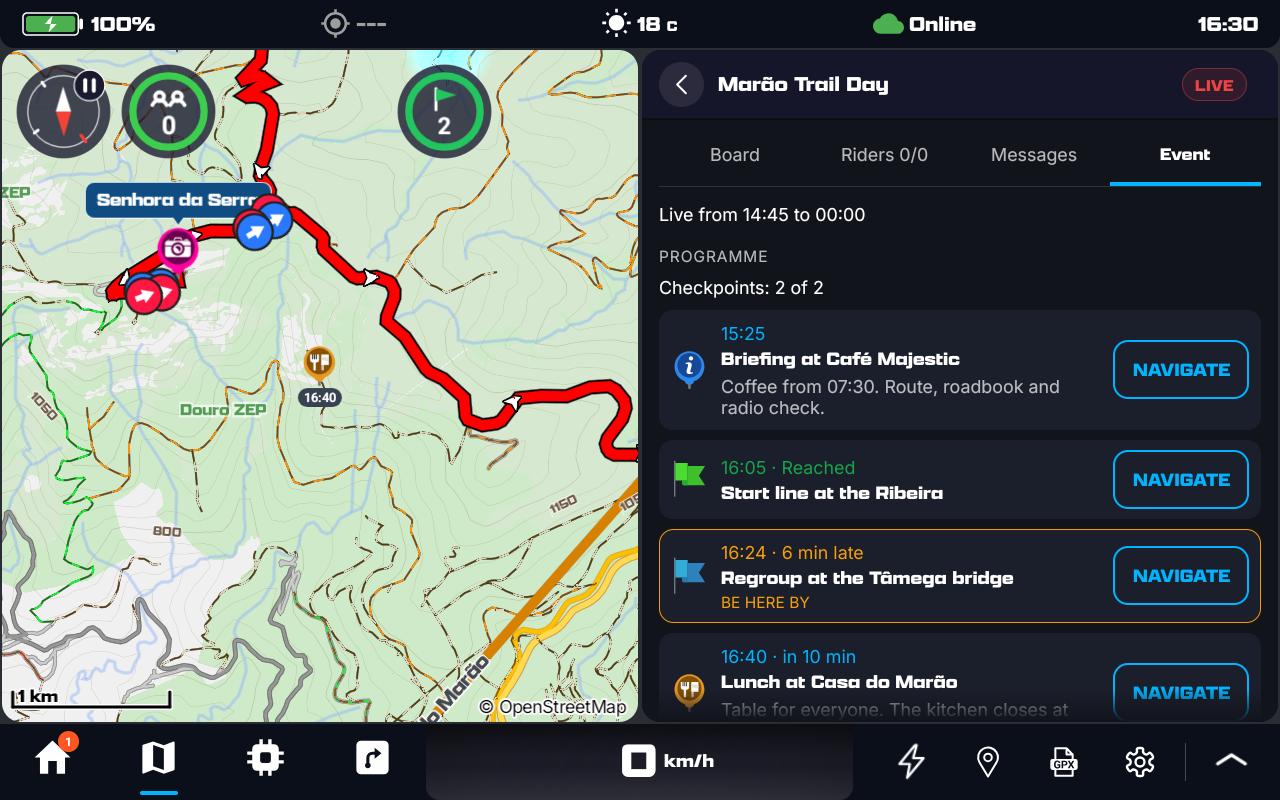

The Event tab in DMD2: Programme, Checkpoints 2 of 2, the briefing at 15:25, the start line Reached, a Be here by regroup 6 min late in amber, lunch in 10 min, each with Navigate; the map beside it shows the lunch point with its time, 16:40

The Programme on the Event tab, and the lunch point on the map after a tap.

While you share your position, DMD2 tells you, with a notice and out loud:

  • the organiser's reminder, the chosen time before a point (“Lunch at Casa do Marão in 15 minutes”);
  • in the last hour before a Be here by point, that you may not make it, when the distance at your recent pace needs more than the time left;
  • that a Be here by point's time has passed and you are not there. Your crew sees it on their dashboard; nothing is sent to them by itself.

Each is said once per point, a restart of the app included; several at once come one after another. Tap the notice to open the Event tab.

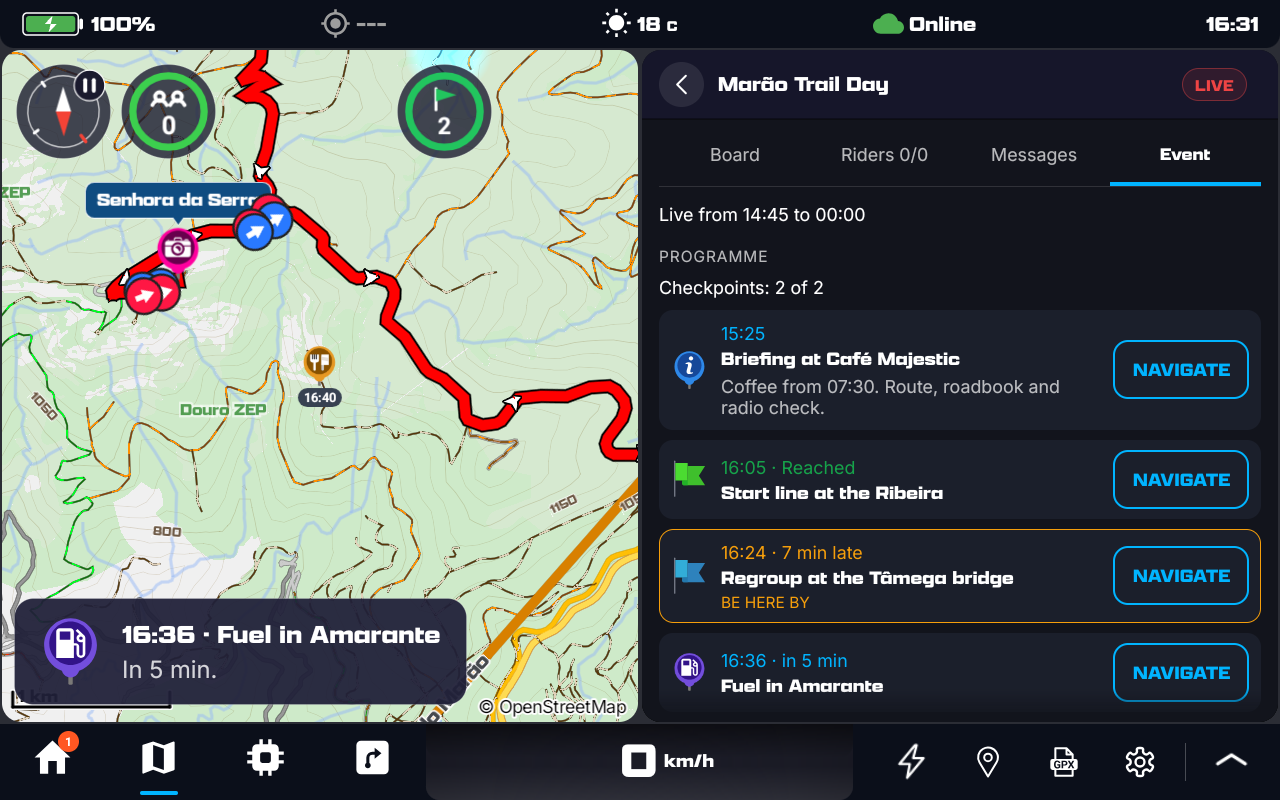

A DMD2 notice over the map: the fuel icon, 16:36 · Fuel in Amarante, In 5 min; the Programme beside it lists the same point

A reminder, with the point's icon and its time.

The public live page

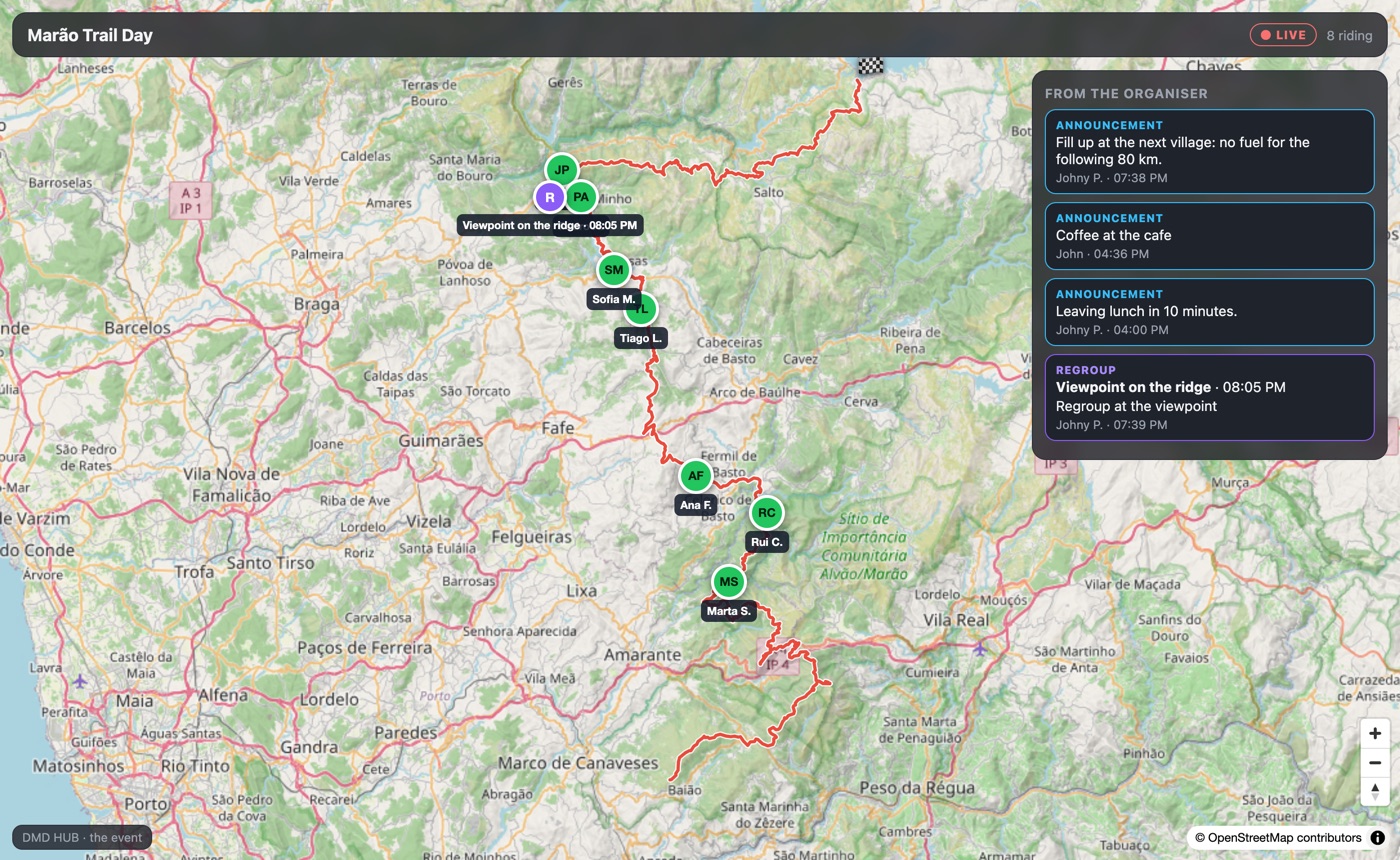

Every event has a public live page unless the organiser switches it off: anyone with its link — family, friends, base camp — follows the event on a map, without an account. You are on it only if you say yes: DMD2 asks once per event, with a card in the view and a notice on the map, and you choose how you show on it:

  • Name, photo, speed and posts: your first name and initial with your HUB profile photo, your speed, and the messages and photos you post on the Board, on the page's Timeline;
  • Name and photo: your first name and initial with your profile photo;
  • Not me: you are not on the page for this event.

You show only while you share your position. The Event tab says which you chose, and Change there changes it at any time. To leave the page for a while, Pause. Riders who said yes before this choice existed show with their name and photo, and DMD2 asks them once more.

Before the live window opens, the page shows only the event points that already show; the route and the riders appear when it opens.

The page opens on the satellite view; Map, Relief and 3D are at the top left, and each visitor's browser keeps their choice. Arrows along the route show which way it goes. Riders too close together to tell apart show as one bubble with their number: click it to zoom in, or, when they stand together (at the start, at lunch), to fan them out around the spot with their names. The panel beside the map has three tabs:

  • Riders: everyone on the page with their profile photo (their initials when they have none), the furthest along the event's route first, with their kilometres done, the route's length and the next event point ahead. Click a rider, here or on the map, to follow them: the map stays on them until you drag it, and the page's link then opens following that rider, so you can send it on.
  • Timeline: the organiser's announcements and regroup pins, and the messages and photos of the riders who chose to show their posts on the page, newest first and as they arrive. Click a photo to see it full size. After the event, the Timeline stays on its memories.
  • Programme: the event points.
The Public live page card in the view: what the page shows, then Name, photo, speed and posts, Name and photo, and Not me

The question, in the view.

For the organiser: the website

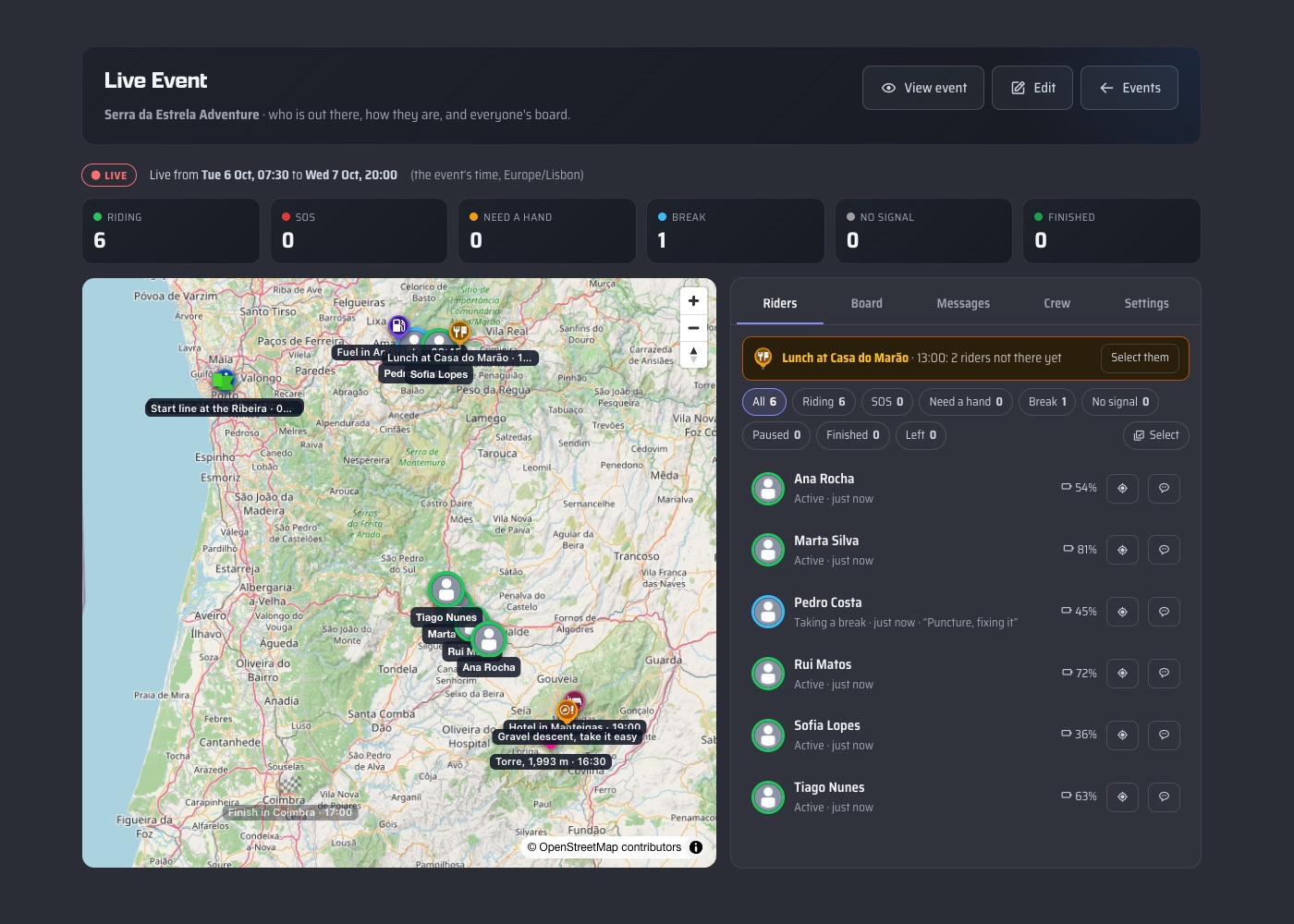

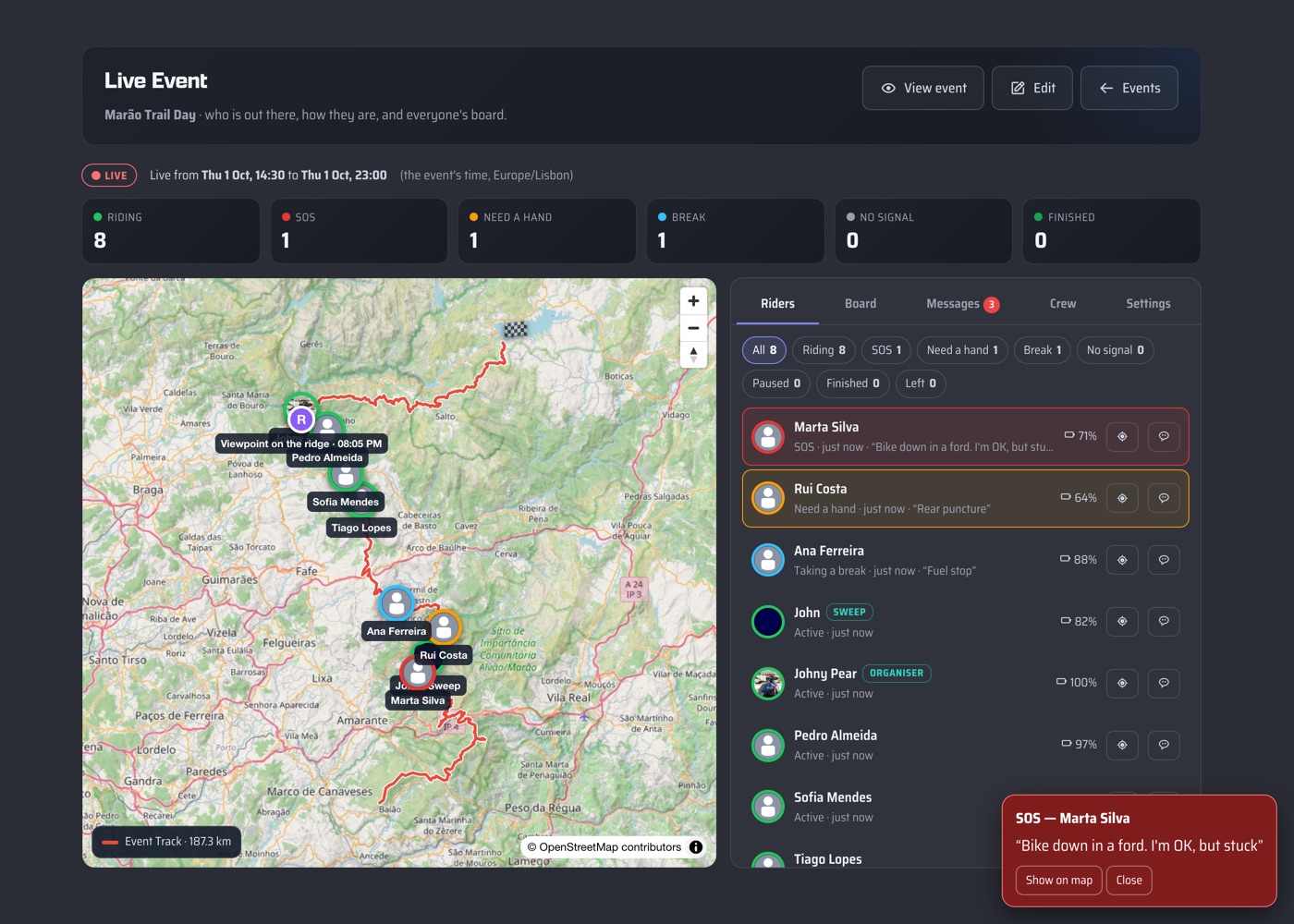

On the HUB website: the Live Event settings, the event points editor and the live dashboard are in Events in the HUB Web manual.

When the event ends

When the live window closes, DMD2 stops sharing, says the live event has closed and takes the event button off the map. The same happens at once if the organiser switches Live Event off. The event's trails, board, photos and messages are deleted 30 days after the window closes, except what its memories keep.

Memories and the Rode it badge

When an event ends, its public live page becomes the event's memories: one page for the whole event, kept for good. It shows:

  • the tracks of the riders who chose to be on the page, each in its own colour;
  • the group's totals: the riders who rode it, the kilometres ridden together, the riders who finished safe, and the photos;
  • Who rode it: click a rider to see their track;
  • the Timeline and the Programme.

No speeds and no rankings. Each track keeps the ride itself, simplified and without times: from where the rider joined the event to the last event point they passed. The way to the event and back home is never kept. Riders who chose Not me count only in the totals.

Signed in to the DMD HUB, you also see your ride: your track in cyan, your kilometres and your riding time. Only you see it, unless you chose to be on the page. If the organiser switched the public page off, the memories open only for the riders who took part and the organiser, signed in.

To find them, open the event on the DMD HUB: once it is over it says Ended and has a Memories button. Your My Calendar marks the events you rode and links their memories.

The Rode it badge

Riders who really rode the event get a Rode it badge on their DMD HUB profile. DMD can only be sure through Live Event: you joined it in DMD2 or the DMD HUB app, and your app shared your position while the event was running — at least 15 minutes and 5 km, and at least once within 1 km of its start, an event point or its meeting place. Marking an event I'm Going is not enough.

Who sees your badges

Your badges show under Events … rode on your public profile, and on your profile in the apps, when Show the events I'm going to and went to is on in your profile's privacy settings. It is off unless you switch it on. You always see your own.

Memories and badges come from Live Event: an event whose riders did not join it live has neither.

Good to know

Your riding group carries on

Live Event is the event's own channel. You stay live in your riding group at the same time; only an SOS crosses over (one SOS everywhere).

In the background

While you share, DMD2 keeps your position going with the screen off or another app in front. A restart picks the event up again while it is live.

Without signal

Your state changes wait for signal and go out when it returns — an SOS raised in a valley too. The others see you as Signal lost meanwhile.

Simulated rides

A simulated ride never reaches the other riders: Live Event shares real positions only.
