The Map is the heart of DMD2 — detailed offline maps and satellite imagery, turn-by-turn navigation, your GPX tracks and routes, live warnings, and a screen full of glanceable overlays. This page is the tour of the map screen itself; the deeper topics each have their own guide below.
The map
A walk-through of this part of the app from Robert Baldinger’s community series DMD NEXT School. The manual below has the full detail.
All lessons on YouTube- Map Data
- Offline vector maps + optional satellite / online layers
- Follow Modes
- Free, North-Up, Bearing-Up, 3D
- Map Buttons
- Quick Actions, Search, GPX, Shortcut, Quick Menu
- Deep-Dive Guides
- Navigation, GPX, Settings & Layers, Warnings
The Map Screen
Everything on the map is arranged around the moving map itself. Here is the anatomy of a typical screen while navigating:
The map screen while navigating, with the key elements numbered.
- Follow button — round toggle (top-left) that sets how the map tracks you. See Follow Modes.
- Info overlays — floating cards showing distance, altitude, nearby POIs, road name and more. See Overlays & Placement.
- Zoom control — zoom the map in and out. (You can also pinch, and the follow mode decides whether panning is free.)
- Your position — the arrow marking where you are and which way you're pointing.
- Navigation instruction — your next turn, distance and ETA while a route is active. Full detail in Navigation & Routing.
- Speed — the speedo in the centre of the bottom menu. Tap it to open the Trip view. (See Speedo Area.)

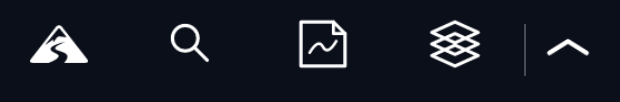

- Map buttons — Section 3 of the bottom menu: Quick Actions, Search, GPX, the assignable Shortcut button and the Quick Menu. See Map Buttons.
A round Online Layers button also sits in the bottom-right corner. With an extra layer on (satellite, weather, fire alerts, country overlays…) it carries how many; tap it to switch layers on and off without leaving the map. See Online Layers.
Follow Modes
The round follow button in the top-left corner sets how the map behaves as you move. Each tap steps through the following modes — Bearing-Up → 3D → North-Up → back to Bearing-Up — while Free is the paused state you drop into by panning the map by hand:
Free
The map stays put so you can pan and zoom freely to look around. Your position icon still shows where you are.
Bearing-Up
The map follows you and rotates to your direction of travel, so straight ahead is always up. Resuming follow from Free lands here by default.
3D
Bearing-Up with a tilted 3D perspective for a more immersive view of the road ahead.
North-Up
The map follows your position with north always up — good for keeping your bearings.
Panels over the Map in Portrait
In portrait, a panel you open from the map — Map Settings, Search, the GPX Manager and Loaded GPX Files, Quick Actions, Quick Save, the GPX Recorder, Location Info, Choose Route Type, the DMD HUB, the Planner — can take the whole screen or share it with the map, with the panel at the bottom and the map above.
Full Screen or Shared
A small round toggle floats over the right end of the panel’s title bar. Tap it to switch between the panel on its own and the panel beside the map. The icon shows what a tap does: two stacked blocks to share the screen, two arrows pointing out to opposite corners to go back to full screen.
Drag the Seam
While the screen is shared, a handle sits on the line between map and panel. Drag it up or down to give the panel anywhere from a fifth to four fifths of the screen; the map always keeps at least a fifth.
- One setting for every panel. Your choice and the seam’s position are remembered and shared: open another panel, or go deeper inside one, and it opens the same way and the same size, so nothing jumps. The very first time, panels open full screen.
- The Planner starts half and half. It always opens sharing the screen equally with the map, since you plan on the map. Moving the toggle or the seam there still changes the setting the other panels use.
- Rotating the device keeps it: turn back to portrait and the panel comes back the way you left it.
Quick Actions & the Shortcut Button

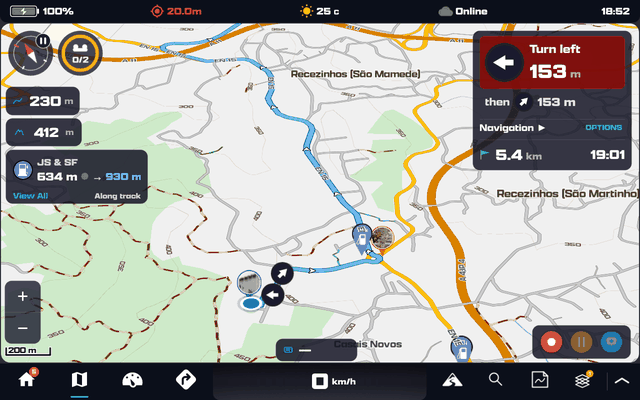

The Quick Actions button — the lightning bolt at the left of Section 3 — opens a panel of one-tap map actions beside the map. It took over the slot the old dedicated HUB button held, so the DMD HUB now lives inside it, as the panel's top row.
The top row is the HUB, two entries side by side: My HUB and Discover. The actions under it are coloured tiles, two to a row: Recorder and Trip Sharing in red, then the yellow Improve / Report, the blue Planner, the green Save Location, Second Map, Map Legend and My Avoids. Quick Toggles and Map Layers follow.
| Entry | What It Does |
|---|---|
| My HUB / Discover | My HUB opens the DMD HUB beside the map — your GPX, locations, riding groups, Trip Sharing, My Events and My Roadbooks. Discover opens it straight on Discover (signed in; its listings need a license). This top row is where the dedicated HUB button used to be. While the HUB is open, on any of its pages, the Quick Actions button stays the circle-X, and a tap closes the HUB; Back from the HUB home, or from Discover, comes back to Quick Actions. |
| Recorder | Opens the GPX Recorder to start and stop recording a track. The tile says Not Recording, Recording or Paused. While a recording is running a row with Pause / Resume, New Track and Add Waypoint appears under this tile and Trip Sharing. |
| Trip Sharing | Opens Trip Sharing beside the map, the same panel as the HUB's Trip Sharing tile. The tile says what your share is doing: Not sharing, LIVE · N watching, Paused, or Sharing on another of your devices while your trip runs there. Its Back comes back to Quick Actions. The tile shows while you’re signed in to the DMD HUB, and always while a share is running; signed out, Recorder takes the whole row. (See the tier matrix.) |
| Improve / Report | Opens the Improve / Report panel, with two large cards, each with a line under it on what it does. Improve Map opens the Improve the Map panel to tell OpenStreetMap about the road you’re on. Report Map opens the Rider Reports panel to warn other riders of a closure or hazard here; its pins switch on and off under Map Layers → Rider Reports. The Improve / Report panel’s Back comes back to Quick Actions. While either riding panel is up, the Quick Actions button is the circle-X, and a tap closes it. While Improve the Map answers wait to be sent, a yellow bubble on the tile’s icon and an N to send pill on the Improve Map card show how many: tap either to go straight to Map Settings → Improve the Map and send them. Back from Map Settings comes back to where you tapped it. (DMD2 4.050 and earlier: two tiles, Improve Map and Report Map, open the two panels directly.) |
| Planner | Opens the Planner to build routes and tracks on the bike. |
| Save Location | Saves your current spot as a location in one tap. It's an action, not a toggle — it fires and closes. |
| Second Map | Shows or hides the Second Map, a second map in a floating window with its own zoom and direction. The tile is there on devices that can run two maps. |
| Map Legend | Opens the Map Legend: what the coloured dashes on a road, the road colours and the main map symbols mean, read from the map as it is drawn now. |
| My Avoids | Opens My Avoids: the areas, circles and stretches of road your routes keep out of, and the buttons to draw a new one. Its Back comes back to Quick Actions. |
| Quick Toggles | Fast on/off switches for map behaviour — the map and UI themes, Map Overlay Indicators and more. |
| Map Layers | The Rider Reports pins and My Avoids, listed first and always there, and quick toggles for ESRI Satellite, Hillshading, Precipitation and Community Ways — and Offline Content once you have downloaded an area — without opening Online Layers. |
The Shortcut Button
The fourth button in Section 3 is a rider-assignable Shortcut. Unassigned it shows a star, and a tap opens the mapping dialog to pick a function. Once assigned it shows that function's own icon and a tap runs it — and a long-press always reopens the mapping dialog to reassign it. While a view it opened is on screen, the button turns into the circle-X close control, like GPX and Search, and a tap closes that view. It is the only close button then — with Map Settings assigned, the arrow-up stays an arrow — and the view's own Back closes it to the map.
The mapping dialog groups what the button can do into three lists:
Views
- Map Settings
- GPX Recorder
- Planner
- Riding Groups
- DMD HUB
- GPX File Manager
- Discover (see the tier matrix)
Actions
- Quick Save Location
Toggles
- Start / Pause GPX Recorder
- Auto Zoom
- Satellite View
- Precipitation
- Auto POI
- Action Cameras Recording
- Map Overlay Indicators
- Second Map (on devices that can run it)
- Map Dark / Light Theme
- Map UI Dark / Light Theme
A view opens that screen and an action runs once. When a toggle is assigned, the button also shows its current state: an underline while the toggle is on — for Map Overlay Indicators that means the indicators are currently shown, and for Second Map that its window is open — a red stripe while the GPX Recorder is recording and a yellow one while it is paused (Action Cameras Recording goes red the same way), and the two theme toggles carry their state in the icon itself, a sun or a moon. Map Dark / Light recolours the map itself; Map UI Dark / Light recolours the panels and chrome around it — the two are independent, and flipping one pins that theme (the map one also stops following the light sensor) until you change it again.
Direct Lines
A direct line is a straight line drawn from your position to a point you picked, with the distance written along it, redrawn as you ride. It is the same read as the Away From Track distance line, except you choose where it points — and you can have several at once, each in its own colour.
It is not navigation: no route, no turns, no ETA. It is the as-the-crow-flies line to somewhere you want to keep an eye on — the fuel stop, the pass you are heading for, the camp the group is meeting at.
Adding a Direct Line
Three kinds of point can carry one. In each case the button reads ADD DIRECT LINE, and once a line exists the same button reads REMOVE DIRECT LINE:
- A GPX waypoint — open the waypoint from GPX → Waypoints and use the button at the foot of its detail panel.
- A saved location — open one of your My Locations places and use the button under Center / Share.
- Any point on the map — long-press the map to open Location Info, tap MORE ACTIONS and the button is in there. This is how you put a line on somewhere that isn't saved anywhere.
The Direct Lines Panel
While at least one line is running, a small Direct Lines button appears on the map: a dotted line running to a pin, the pin in the colour of the nearest line, with how many there are underneath. It is noticeably smaller than the follow button and carries no coloured ring inside it, so it never reads as another Active Group or Trip Sharing button. Tap it to open the panel, which lists every line nearest first with:
- the live distance to that point;
- its name and where it came from (GPX waypoint, saved location or custom point);
- a colour swatch — tap it for the same twelve colours the GPX line pickers use, so two lines never look alike;
- a × to remove that line, and REMOVE ALL DIRECT LINES at the foot when there is more than one.
Tapping a row's name centres the map on that point. Rows hold their order while the panel is open, so nothing slides out from under your finger — only the distances change.
At the top of the panel, Line Width sets the thickness of every direct line at once. It stays folded away so it never pushes the lines off the screen — the row shows a sample stroke at the current weight, and tapping it unfolds the slider. It is a look, not a per-line property: colour is what tells two lines apart.
Direct lines survive closing the app and belong to your rider profile, so each profile keeps its own. You can have up to ten at once. The button drags and resizes like every other map button — long-press it, or use Position Elements. It has no on/off switch of its own: it is already absent whenever you have no lines.
The Second Map
The Second Map is a second, independent map in a small floating window, or docked beside the main map as a Side Panel. It keeps its own zoom and its own direction, so the main map can stay close in on the next turn while the Second Map shows the whole track, or where your riding group is. It draws your offline maps, so it needs no internet.
It is offered on devices with enough memory to run two maps. On a device with too little, the Second Map tile, its settings and its buttons are not shown.
Showing and Hiding It
Each of these shows the window, and hides it again with the next tap:
- The Second Map tile in Quick Actions.
- The Shortcut Button, with Second Map assigned from its Toggles list. The button is underlined while the window is open.
- The Second Map Button, a round button on the map. It is off until you switch it on in Map Settings → Map Overlays, and it fills with colour while the window is open.
- The Second Map row in the Remote Controller Menu, in the Map family. It can be bound to a double tap like the other rows.
On the window itself, the round X in its top-right corner closes it. DMD2 remembers whether it was open: close the app with the Second Map up and it is up again the next time.
Moving and Resizing It
The window has no title bar, so the map fills it. Its controls sit in the corners:
- Top left: the move grip. Drag it to put the window anywhere on the screen.
- Bottom left: the resize grip. Drag it to make the window bigger or smaller.
- Top right: the X that closes the window, and left of it a gear that opens the Second Map settings.
- Bottom right: zoom in, zoom out and the follow button.
Where the window sits and how big it is are remembered, for portrait and for landscape apart. While its settings are open the window steps over to the map side, so you can watch what each choice does; it goes back to its place when you close them.
As a Side Panel
On a small screen the floating window can cover a good part of the main map, and your position with it. Set Layout to Side Panel in the Second Map settings and the Second Map docks beside the main map instead: on its right in landscape, under it in portrait. The main map narrows to make room, so neither map covers the other and each keeps your position centred in its own part of the screen.
- It starts at a third of the screen. Drag the divider in the gap between the two maps to make it bigger or smaller, from a quarter to half of the screen. It snaps to a third and to a half as you pass them. The size is remembered, for portrait and for landscape apart.
- It keeps the same buttons as the window: the X and the gear at the top, zoom and follow at the bottom. There is no move or resize corner.
- It shows in the map section only, whatever Show says, and comes back when you return to the map. It shows only while the map has the screen to itself: when a screen opens beside the map, like Map Settings or the GPX list, the Side Panel steps away and the map takes its full width again. Close that screen and the Side Panel docks again, at the same size.
- The map’s buttons and cards move in to fit the narrower map, and go back to their places when you close the Second Map.
The floating window is still the default. Switch Layout back to Floating Window at any time.
Following You
Each tap of the follow button goes to the next mode, and a short note on the window names it:
- Free: not following. The map stays where it is.
- North Up: following your position, north at the top.
- Rotate to Travel: following your position, turned so your riding direction points up.
Drag the Second Map by hand and it stays where you left it until you tap the follow button. Zoom it with the buttons, a pinch or a double tap and it keeps that zoom; with one of the Fit zoom modes below, zooming by hand also holds the map still until you tap follow.
What It Shows
The Second Map is an overview, so it draws less than the main map: roads with their names, place names, your position, the line you are following and, if you switch them on, the riders of your group or event. It leaves out POI symbols, online layers, the weather and the map overlays.
It follows the main map’s light or dark theme, your road colours and your colour preset. It always draws the whole line: Ridden Part of the Line dims or hides the stretch behind you on the main map only.
Second Map Settings
Reach them from Map Settings → Second Map, or from the gear on the window:
| Section | Choices |
|---|---|
| Layout | Floating Window (the default): over the main map, moved by its top corner and resized from its bottom corner. Side Panel: docked beside the main map, which narrows so neither covers the other; drag the divider between them to resize it. In the map section only. |
| Show | In Every Section (the default): the window stays on top of Home, the map, the roadbook and every other section. In the Map Section Only: the window hides when you leave the map section and comes back, in the same place, when you return. With this choice, showing the Second Map from another section takes you to the map first. The Side Panel layout always works this way. |
| Shown on the Second Map | Four switches. Navigation Line (on): the line of a navigation in progress, without turn arrows or labels. Followed GPX Line (on): the track or route you are riding on. Riding Group Riders (off): a dot for each rider of your active riding group. Live Event Riders (off): a dot for each rider of the live event you are in, in their state colour. |
| Map Type | Roads (the default): your offline maps, no internet needed. Satellite: satellite imagery, which needs internet and a DMD2 license, like the main map's Online Layers. Without internet the Second Map shows Roads, and says so in a note that fades after a few seconds. Without a license it shows Roads too, and keeps your Satellite choice for when the license is back. |
| Direction | North Up (the default) or Rotate to Travel. It is the same choice the follow button makes. |
| Zoom | Fixed (the default): stays at the zoom you set, centred on you. Fit Whole Track: shows the whole line you are riding or navigating. Fit Riding Group: shows you and every rider of your active riding group. Fit Event Riders: shows you and every rider of the live event. A fit with nothing to show (no line, no riders) behaves as Fixed. |
